MVRPL · BRAND PARTNER

Basler Cameras

Industrial & network cameras and accessories for factory automation, traffic, retail, medical and life sciences — backed by Basler's 3-year warranty.

Basler — area scan and line scan cameras

About Basler

A large selection of industrial & network cameras

Basler offers a large selection of industrial and network cameras and accessories for applications in factory automation, traffic systems, retail, as well as medical and life sciences.

Cameras — Basler's extensive experience in camera design and production is reflected in the high image quality of their area scan, line scan and network cameras. All cameras are tested and calibrated to meet strict quality standards, and are backed by a three-year warranty.

Accessories & Software — High-quality accessories tested for compatibility with Basler products, plus the no-cost pylon Camera Software Suite to get your camera up and running quickly.

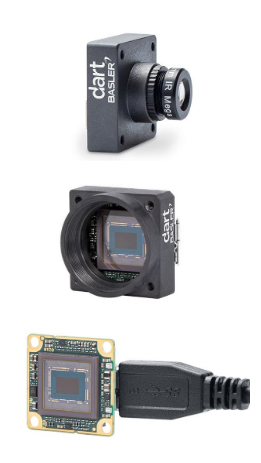

Basler Dart Series board-level camera
BASLER · DART SERIES

Basler Dart Series

The Basler dart board-level camera meets the requirements of a broad variety of vision applications and leaves no design wish unfulfilled. It meets the smallest space requirements, as well as demanding expectations for low weight, power consumption and heat generation.

Put your trust in the latest technology, a highly cost-optimised design and Basler's proven quality and reliability — starting at €49 with best value for money and optimised total cost of ownership.

Footprint (Bare board)
27 × 27 mm · 5 g
Footprint (S / CS-Mount)
29 × 29 mm · 15 g
Sensor Resolutions
1.2 MP – 13 MP
Frame Rate
Up to 60 fps
USB 3.0 Bandwidth
Up to 350 MB/s
Mount Options
Bare board · S-mount · CS-mount

Dart Highlights

Smallest board level design, highly flexible

Smallest Board-Level Footprint

Just 27 × 27 mm at 5 g for the bare board version — sets a new standard for single-board cameras in tight integrations.

Three Versatile Interfaces

USB 3.0 (USB3 Vision compliant) for plug-and-play integration; BCON for MIPI tailor-made for MIPI CSI-2; and BCON for LVDS for embedded systems.

Sony IMX Sensor Models

New USB 3.0 models with Sony IMX392 (2.3 MP @ 160 fps, global shutter) and IMX334 (8.3 MP @ 45 fps, rolling shutter) — colour and mono variants.

Best-in-Class Image Pre-Processing

Integrated PGI feature set delivers debayering, denoising and improved sharpness directly in-camera.

pylon Camera Software Suite

Basler's powerful pylon Software Suite is included free, supporting Windows and Linux for fast integration.

Long-Term Availability

Industrially-proven reliability with long-term availability — protecting your design investment over the product life cycle.

BASLER · AREA SCAN CAMERAS

Area Scan Camera Range

Basler's broad portfolio of area scan cameras delivers the best price/performance ratio across multiple interfaces and sensor technologies — covering everything from entry-level vision projects to high-throughput industrial inspection.

  • Best price/performance ratio across the entire range
  • USB 3.0 — the easiest way for plug-and-play integration
  • Gigabit Ethernet — up to 100 m cable length for remote sensors
  • Camera Link — highest throughput for demanding applications
  • Broad sensor selection: CCD, CMOS, NIR versions
  • Six camera families: Ace · Aviator · Beat · Dart · Pilot · Pulse
Get a Quote Talk to a Specialist
Basler Area Scan Cameras

Area Scan Families

Six families to match every application

01

Basler Ace

Best price/performance — USB 3.0, GigE and Camera Link options across CCD, CMOS and NIR sensors.

02

Basler Aviator

High-resolution CCD cameras for demanding inspection tasks with outstanding image quality.

03

Basler Beat

Exceptionally compact GigE camera for ultra-high resolution requirements.

04

Basler Dart

Smallest board-level camera in the portfolio — ideal for embedded and OEM integrations.

05

Basler Pilot

Robust GigE cameras with reliable performance for long-cable industrial deployments.

06

Basler Pulse

Compact USB 3.0 cameras delivering excellent imaging at an attractive price point.

More from Basler

Line Scan, Power Packs & More

Complete the system with line scan cameras, evaluation power packs, lenses and the pylon software suite.

Line Scan Cameras

  • Basler Racer
  • Basler Runner
  • Basler Sprint
  • Basler L300

Power Packs

  • Basler's Power Pack for Microscopy
  • Basler's Power Pack dart USB for Evaluation

Accessories — Basler Lenses

  • Basler Lens C125-0418-5M F1.8 f4mm
  • Basler Lens C125-0618-5M F1.8 f6mm
  • Basler Lens C125-0818-5M F1.8 f8mm
  • Basler Lens C125-1218-5M F1.8 f12mm

Software

  • Pylon 5 for Windows
  • Pylon 5 for Linux

Need a Basler camera or accessory in India?

Magna Tech Solutions, in partnership with MVRPL, supplies the full Basler portfolio with lens recommendations, integration support and after-sales service.

Request a Quote Talk to an Expert
