YMC Modal Shaker Kit MS-20

YMC Piezotronics

A compact permanent-magnet modal shaker for experimental modal analysis, mechanical mobility and structural dynamics testing.

Brand

YMC

Model

MS-20

Frequency Range

DC – 6 kHz

Peak Force

≥ 20 N

Stroke (P–P)

±5 mm

Weight

3.3 kg

Availability

In Stock

Product Brochure Get Latest Price

Overview

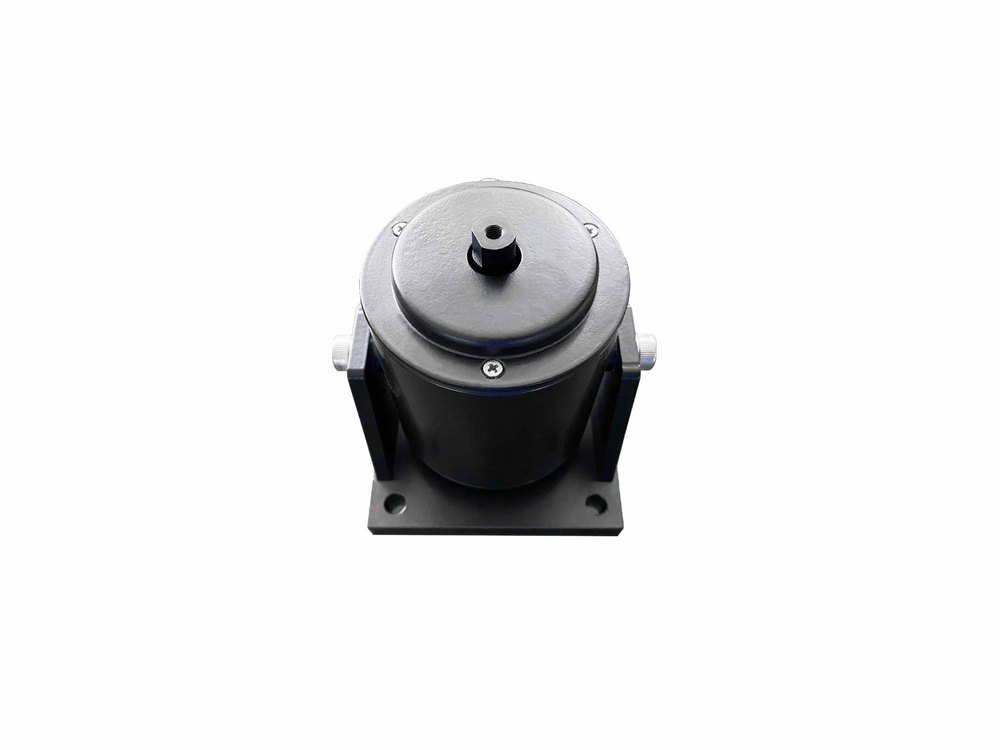

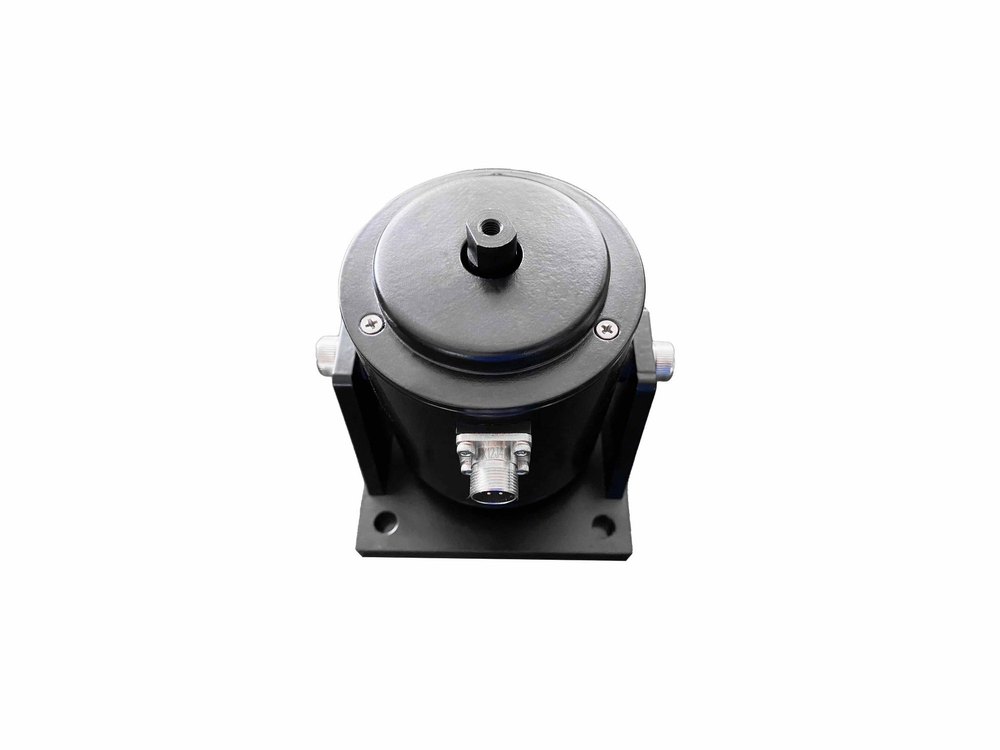

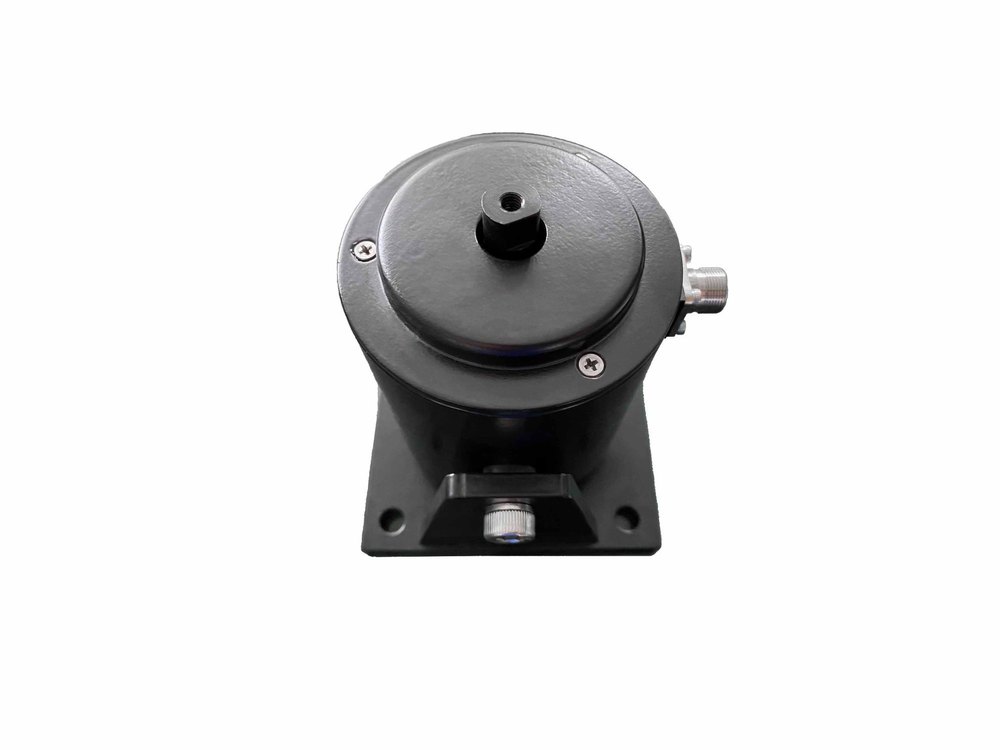

YMC MS-20 Modal Shaker Kit

The YMC MS Series Modal Shakers are engineered for high-performance modal testing and vibration analysis applications. Built with permanent magnet technology, these shakers deliver precise, stable, and reliable excitation for a wide range of experimental scenarios.

Designed with high-quality materials, rugged construction, and stringent quality control, the MS Series ensures long-term durability and consistent performance. With an optimized force-to-weight ratio, these shakers provide efficient excitation while minimizing setup complexity and time.

The MS-20 model is a compact, lightweight permanent-magnet shaker delivering ≥20 N peak force across a DC – 6 kHz frequency range — ideal for general mechanical mobility measurements, experimental modal analysis (EMA) and structural dynamics investigations on small to medium structures.

Why MS-20

Key Advantages

High Precision & Repeatability

Consistent, reliable response for accurate modal testing across repeated measurements.

Stable Performance

Maintains output stability across the full DC – 6 kHz frequency range without drift.

Compact Design

Excellent force-to-weight ratio packed into a portable 3.3 kg footprint.

Durable Construction

Rugged build with stringent QC ensures long operational life under continuous use.

Quick & Easy Setup

Streamlined mounting and connections get experimental testing started in minutes.

Applications

Built for Modal Analysis

01

Mechanical Mobility

General mechanical mobility measurements across components and assemblies.

02

Experimental Modal Analysis

EMA of mechanical structures to characterise mode shapes and frequencies.

03

SISO / MISO / SIMO / MIMO

Single and multi-input/output modal testing configurations supported.

04

Structural Dynamics

Advanced investigations into structural behaviour under controlled excitation.

05

Damage Detection

Identify and localise structural damage through frequency-response shifts.

06

FEM Correlation

Validate and tune Finite Element Models against measured experimental data.

Technical Specifications

MS-20 Specifications

Maximum Force (Peak)	≥ 20 N
Maximum Amplitude (Peak–Peak)	±5 mm
Maximum Input Current	≤ 2.0 Arms
Frequency Range	DC – 6 kHz
Moving Coil DC Resistance	6 Ω
Mobile Parts Mass	0.1 kg

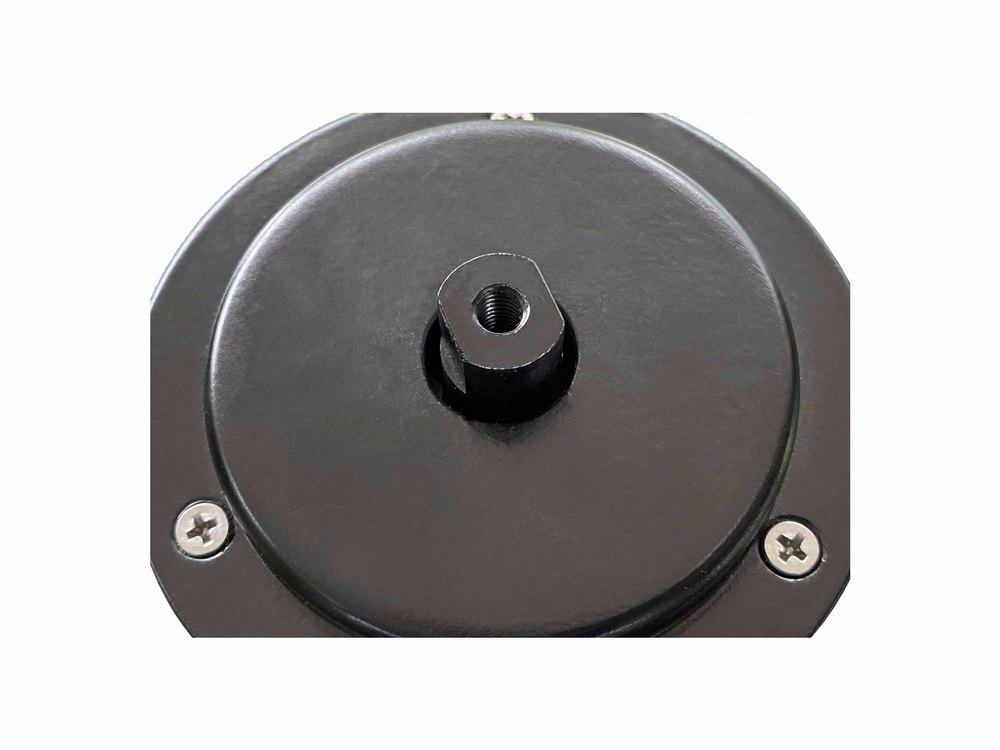

Output Connector	Rod / M5 (M8 option available)
Supporting Power Amplifier	60 W / 100 W
Brand	YMC Piezotronics
Place of Origin	China

Engineering Detail

Technical Highlights

Maximum Input Current

Up to 45 Arms

Model dependent across the MS Series

Coil DC Impedance

Optimised

Efficient power usage by design

Effective Moving Mass

Low Mass

Accurate excitation response

Mounting Flexibility

Multiple Configs

Adapts to varied test setups

Output Connector

M5 / M8

Standard rod connections

Compatible Amplifiers

100 – 3000 W

Depending on model selected

Delivery Scope

What's in the Kit

A complete, ready-to-deploy modal testing package — no missing pieces, no integration headaches.

Shaker (MS-20)

Associated Power Amplifier

Stinger Rod

Associated Cables

Signal Generator (PC based)

Documentation & brochure

Optional Accessories

Enhance System Performance

Tailor the MS-20 to your test setup with these factory-supported accessories.

Hard & Soft Rods

Selectable stinger rods for different excitation conditions and stiffness regimes.

Mounting Bracket

Adjustable support that adapts to varied test fixtures and orientations.

Air Cooling Device

Improves thermal performance during extended high-duty operations.

Holding Device

Provides secure, stable positioning of the shaker against the test article.
